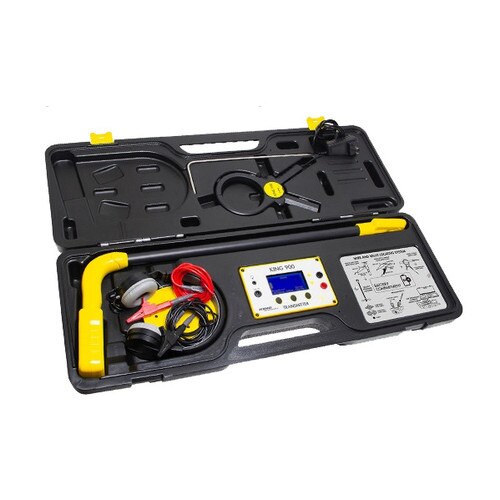

King Innovation DL Advanced Digital Cable, Wire & Valve Locating System
Inductive mode capability: inductive clamp and inductive antenna modes
Dual direct connect frequencies (2kHz, 33kHz) and adjustable power for a variety of locating applications
Passive 50-60Hz AC Tracking
Choose between null or peak tracing modes
AC noise rejection system for improved accuracy
Direct Connect (HI-F) 33 kHz
Wireless (BCST or Clamp) 175 kHz
Passive AC 50/60 Hz
Clamp Interior Diameter: 3.5 inches (85mm)
Direct Connect Signal Output: 900V peak with no load 1W maximum
Audio Output: Headseat and loudspeaker
Power Source: Transmitter â Eight (8) D cell (LR20) alkaline* or NiMH* or External 120VAC Powering; Receiver â One (1) 9V (6LR61)*
Both audible (external speaker or headset) and visual indicators
Sealed controls and display for durability and reliability
Extended range for largest irrigation systems
Determine wire depth using the triangulation method
